​​Power System​​
Equipped with a high-performance Yanmar 3TNV80F engine.
Rated Power: 14.6 kW, delivering robust power.
Compliant with China IV, Euro V, and US Tier 4 emission standards. Energy-efficient, economical, and environmentally friendly.
Features renowned brand hydraulic components utilizing a load-sensing system. Ensures efficient flow distribution and precise power matching for higher operational efficiency. ​​

Cab​​

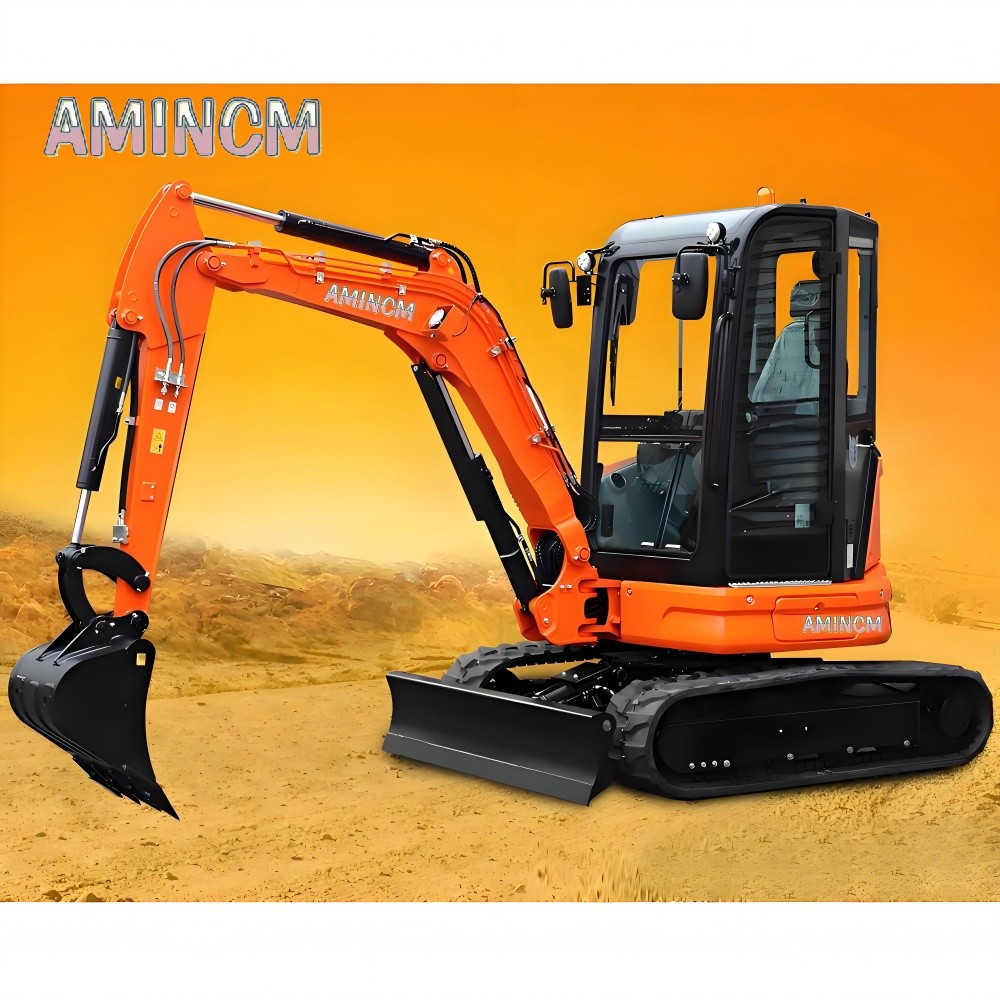

Short-tail body design, resulting in a compact, aesthetically pleasing, and agile machine.
Equipped with a high-strength cab that meets TOPS/FOPS safety test requirements, providing enhanced safety protection. ​​
Working Device​​
Boom and arm constructed from high-strength alloy structural steel, offering high strength and excellent weldability.
Employs a reinforced box-section structural design throughout, providing strong resistance to bending and torsion.
Standard configuration includes multi-purpose attachment pipelines, ensuring convenient switching between different attachments.
Capable of satisfying diverse working scenarios, enabling multi-functional applications with a single machine.
​​Swing Functionality​​
Features a boom swing design, allowing effortless left and right offset operation. Ideal for confined space operations such as near walls, in corners, or within basements, ensuring high maneuverability and flexibility.
Detailed Specifications

Parameter	Unit	Value
Overall Mass	kg	2650
Bucket Capacity	m³	0.08
Engine Model	-	Yanmar 3TNV80F
Engine Power	kW/rpm	14.6 / 2400
Fuel Tank Capacity	L	26
Main Pump Max. Flow	L/min	67.2
Working Pressure	MPa	24.5
Hydraulic Tank Capacity	L	24
Max. Digging Reach	mm	4767
Max. Digging Height	mm	4170.5
Max. Digging Depth	mm	2800
Max. Dumping Height	mm	2841
Max. Ground Digging Reach	mm	4651
Travel Speed (High/Low)	km/h	3.0 / 2.2
Swing Speed	rpm	10
Tail Swing Radius	mm	765
Undercarriage Length	mm	1560
Track Gauge	mm	1200
Max. Bucket Digging Force	kN	23.1
Max. Arm Digging Force	kN	13.6
Transport Dimensions (L x W x H)	mm	4174 x 1500 x 2453
